GLC PRECISION provides honing heads designed for precision bore finishing across various industries. Our honing heads are suitable for a wide range of honing machines, including Nagel, Sunnen, Gehring, Nissin, MAS, Fuji, and other leading brands.

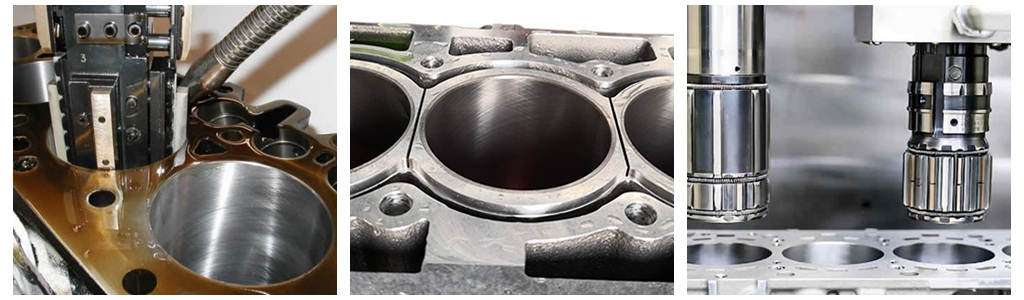

Automotive Engine Cylinder Block Honing Head Functions
1. Online automatic measurement with automatic compensation function.
2. Dual-feed honing, enabling both cross-hatch honing and plateau honing functions.
This series of honing heads has been successfully integrated with imported honing machines (Gehring, Nagel).
Product Categories

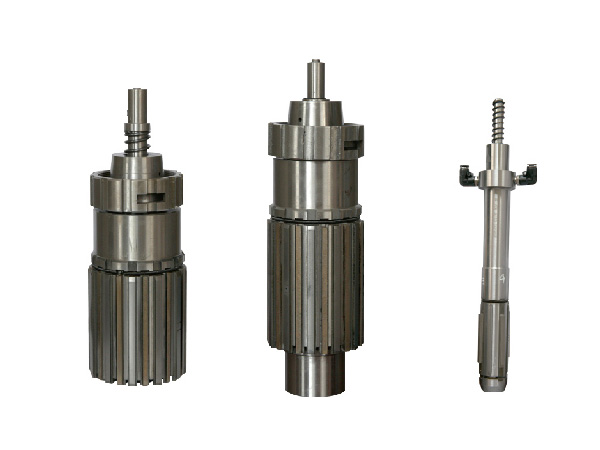

Designed for through holes and blind-hole bores, this honing tool supports diameters from 25.15mm to 152mm. It is compatible with various horizontal honing machines. To ensure optimal selection, customers should provide details on their honing equipment, machining range, and specific working conditions.

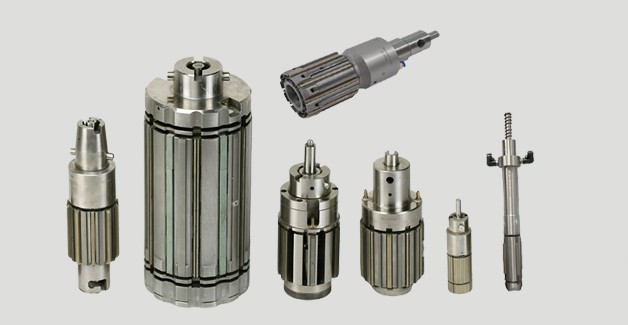

This honing tool is engineered for use with Nagel, Sunnen, Hunnen, and other vertical honing machines, offering a machining range of 17mm to 600mm. It is available in single-stage, two-stage, and pneumatic gauging types, making it adaptable to different machining environments.
Note: Two-stage honing heads are particularly suitable for marine machinery parts with bore diameters up to ø400mm.

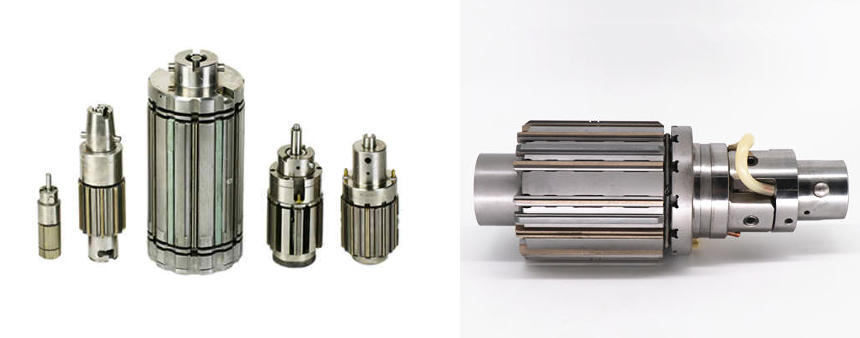

Specifically developed for Sunnen and other brand-name horizontal honing machines, this honing tool is designed for honing bores within a diameter range of 17mm to 152.4mm.
GLC PRECISION provides high-performance honing heads designed for precision bore finishing across various industries. Our honing heads are suitable for a wide range of honing machines, including Nagel, Sunnen, Gehring, Nissin, MAS, Fuji, and other leading brands. With machining capabilities ranging from 17mm to 600mm, these honing heads ensure superior geometric accuracy, high cutting efficiency, and excellent surface finish.
GLC’s Cylinder Honing Head is specifically designed for the precision honing of engine cylinder bores. It is widely used in the manufacturing and remanufacturing of internal combustion engines, particularly for automobiles, motorcycles, trucks, construction machinery, and agricultural equipment.

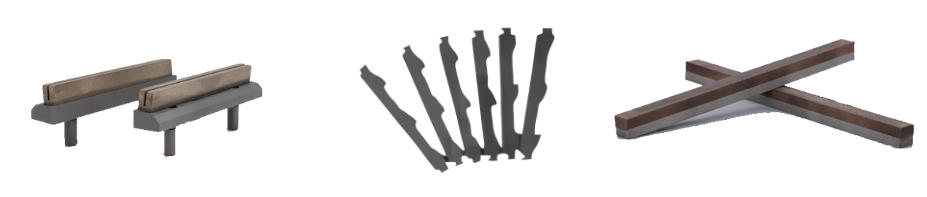

To achieve superior honing performance, GLC PRECISION provides high-quality honing stones tailored for different materials:
·Diamond honing stones: Ideal for honing cast iron, aluminum-silicon alloys, Babbitt alloys, bronze, brass, glass, ceramics, and similar materials.
·CBN (Cubic Boron Nitride) honing stones: Suitable for honing tool steel, hardened steel, high-temperature alloy steel, high-chromium cast iron, and other superhard materials.
Mode:CBN Inserts Type:BN-S300,BN-S30 Application:Brake Disc/Drum
Mode:Drilling, Boring, Reaming Type:Gun Drills, Solid Carbide Drill Application:Hole Machining
Mode:Turning, Milling, Drilling, Boring Type:Crown Drill, PCD Inserts Application:Wind Energy
Mode: Type: Application:Hydraulic industry
