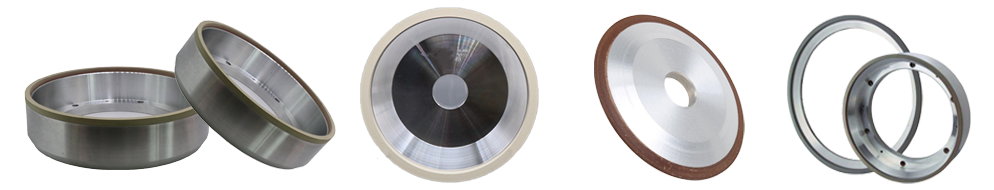

Peripheral Grinding Wheel

Peripheral Grinding Wheel Peripheral Grinding Wheel Peripheral Grinding Wheel Peripheral Grinding Wheel Peripheral Grinding Wheel < >: Introduction

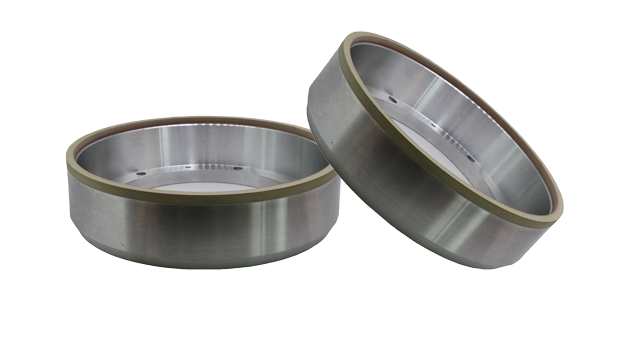

Full name: Peripheral Grinding Wheel, Diamond Wheel, Peripheral Dia
Model: 6A2T, 6A2M, 11A2B, 12A2T, 2A2T
Adhesive: Vitrified, resin
Application: Grinding carbide inserts, ceramic inserts, PCD/ PCBN inserts, etc.
Whatsapp: +8613271562251
Email: halnn@halnn-group.com; Get Quote

: LEADING POSITION We're in the leading position, is the well-known brand in superhard materials and application in China.

: SITUABLE SOLUTION Provide tailored service in superhard material and tools field, devote to offer comprehensive solution to global customers.

: MASS STOCK There is Large stock for standard tools, noted for our quality any service in Chinese high-end market.

: BEST COOPERATION We had prepared the distributorship and service center in the global key markets, is opening to welcome any cooperation for discussion.

Parameters

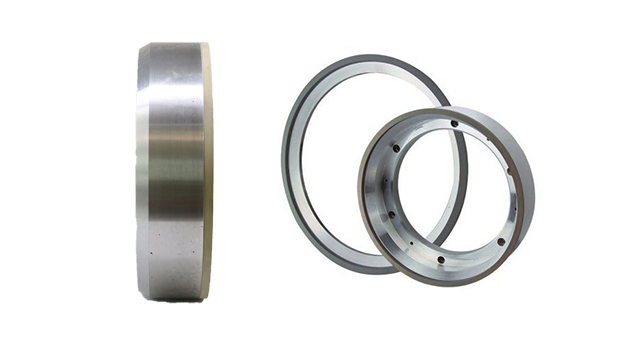

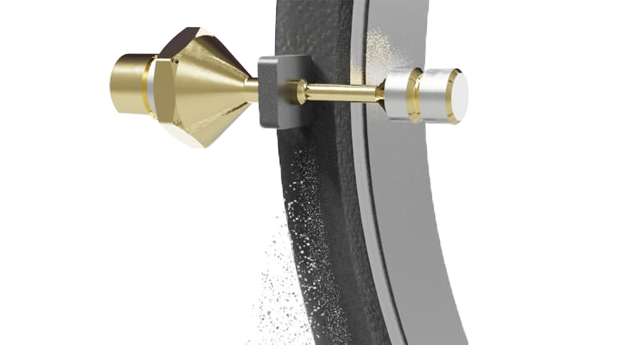

Peripheral Grinding Wheel is widely used for peripheral sizes and precise edge grinding of indexable inserts, tungsten carbide inserts, ceramic inserts, CBN& PCBN inserts.

Specifications:

The drawing	Model	D	W	X

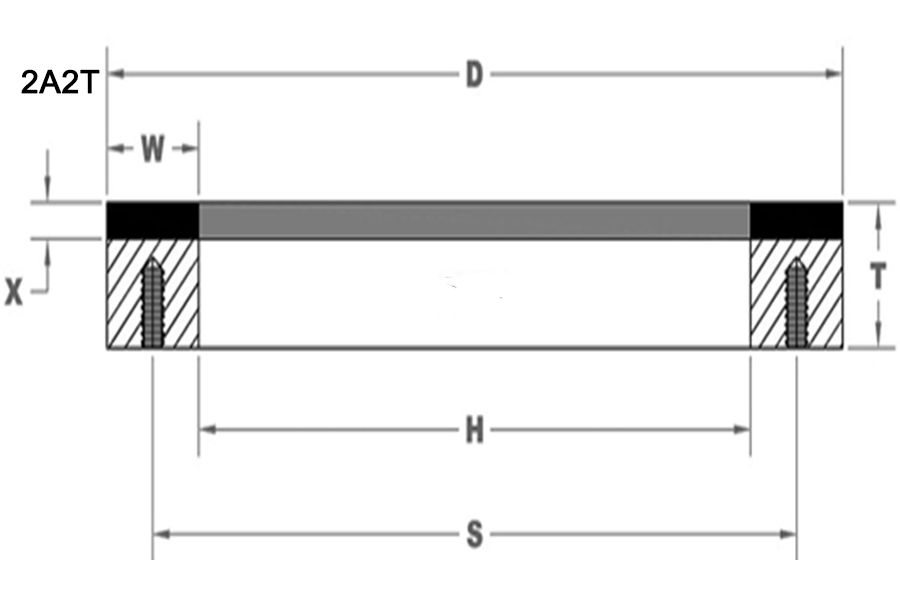

	2A2T	250~400	5~18	6~10

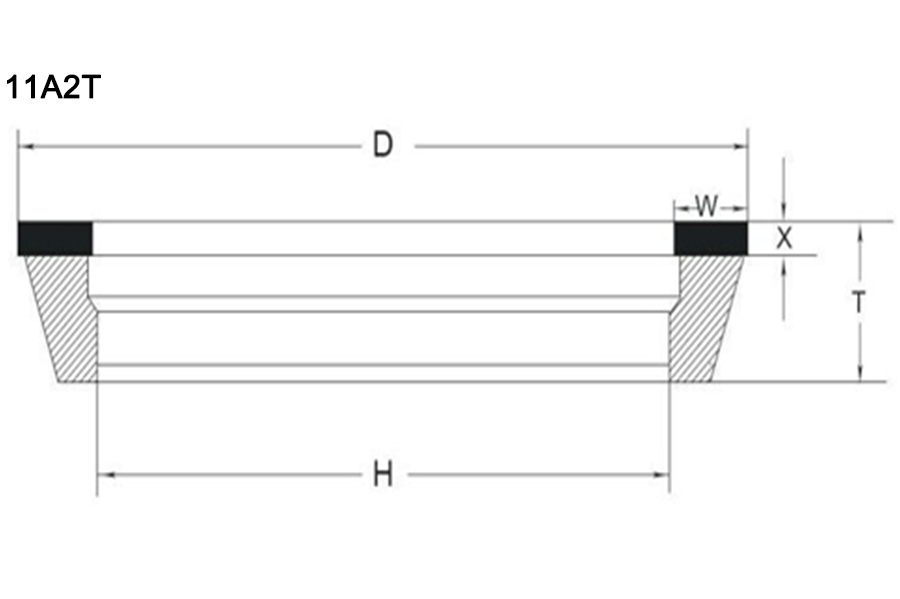

	11A2T	300~400	3~18	6~10

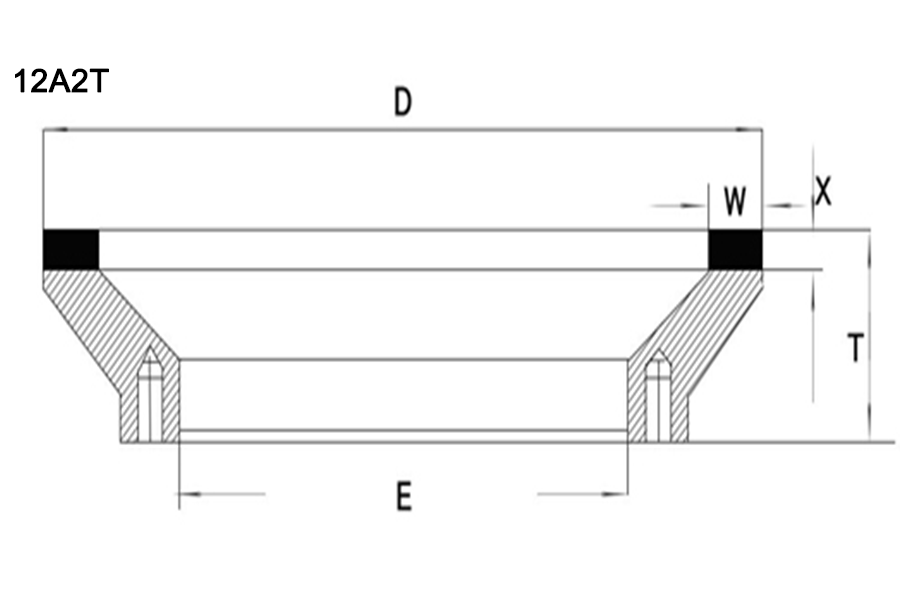

	12A2T	220~400	3~18	6~10

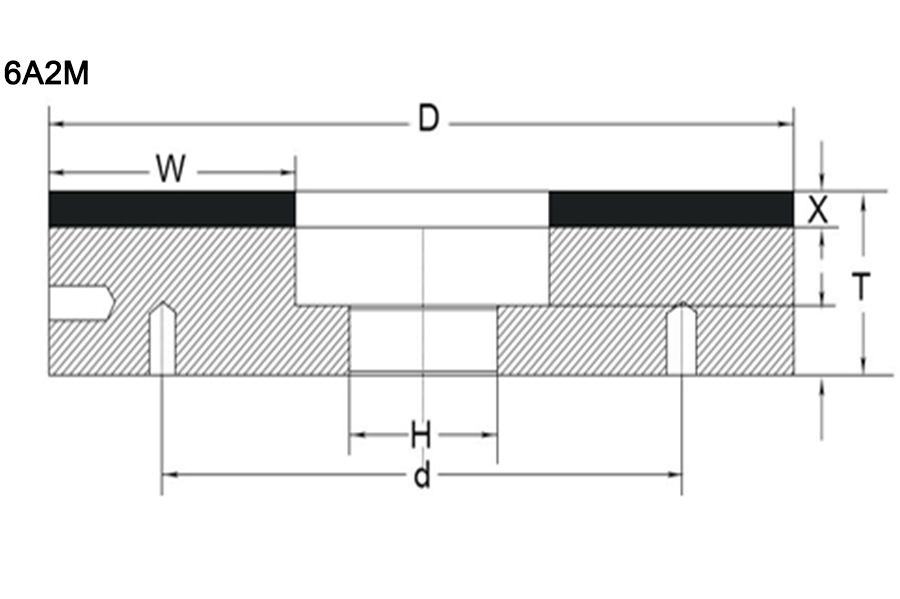

	6A2M	300~350	5~30	6~10

Please note: Other specifications can be customized according to customer drawings or needs.

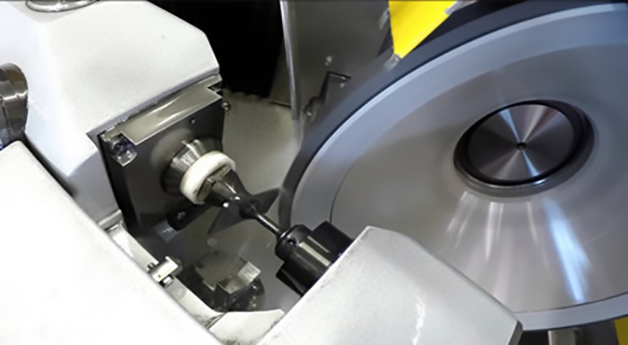

Application

Advantages Of Halnn Peripheral Diamond Wheels

1. High durability, long life

2. Good edge quality of inserts

3. Good surface accuracy retention

4. High stock removal efficiency

5.Have rich manufacturing wheels experience, can provide suitable solutions based to customer needs

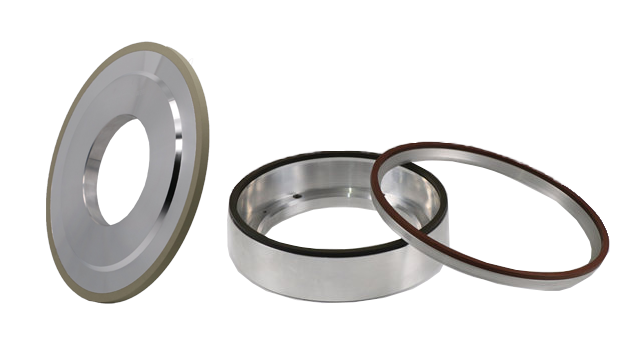

Product Line
