Grinding Wheel For CNC Tools
  • Grinding Wheel For CNC Tools
  • Grinding Wheel For CNC Tools
  • Grinding Wheel For CNC Tools
< >
Introduction

Full name: Grinding Wheel For CNC Tool, Grinding Wheel For CNC Tool Grinder, CNC Grinding Wheel, Diamond Flute Wheel

Model: fluting (1A1, 1V1), gashing and clear edge (1V1, 12V9), relief angle (11v9)

Application: Grinding tungsten carbide, high speed steel (HSS), stainless drill ,end mill and reamer.

Whatsapp: +8613271562251  

Email: halnn@halnn-group.com


Get Quote
LEADING POSITION We're in the leading position, is the well-known brand in superhard materials and application in China.
SITUABLE SOLUTION Provide tailored service in superhard material and tools field, devote to offer comprehensive solution to global customers.
MASS STOCK There is Large stock for standard tools, noted for our quality any service in Chinese high-end market.
BEST COOPERATION We had prepared the distributorship and service center in the global key markets, is opening to welcome any cooperation for discussion.
Parameters

Grinding Wheel For CNC Tool is widely Mainly used for grinding and polishing of groove, end edge and peripheral edge for milling tools and drills of cermet, carbide, HSS and other materials, We provide a complete solution for CNC tools manufacturing process, including fluting, gashing and Clear edge, relief angle grinding.

Grinding Wheel For CNC Tools(图1)

Specifications:

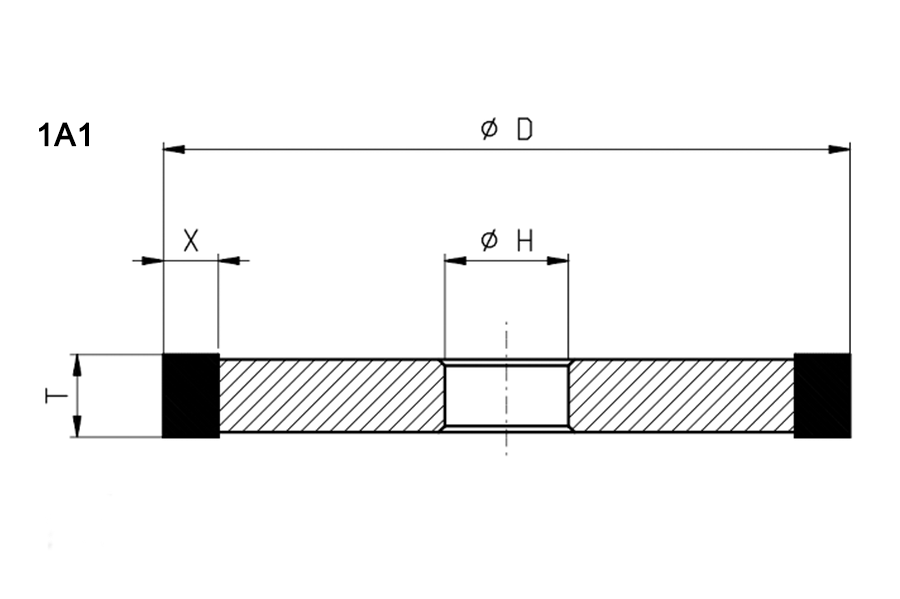

Fluting Grinding(1A1, 1V1, 14F1):

The drawing

Model

D

T

X

H


1A1

75~150

6~16

5~10

31.75

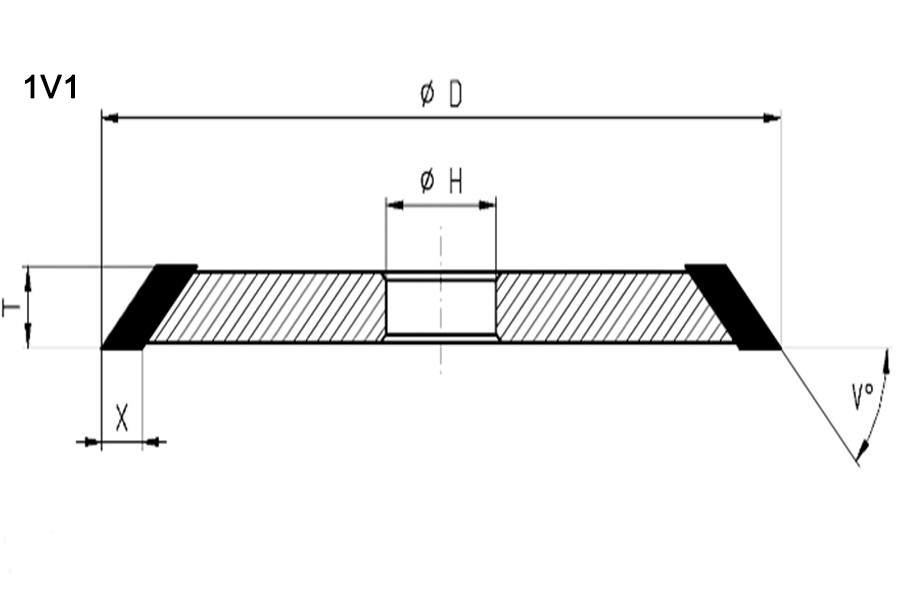

1V1

75~125

6~15

5

31.75

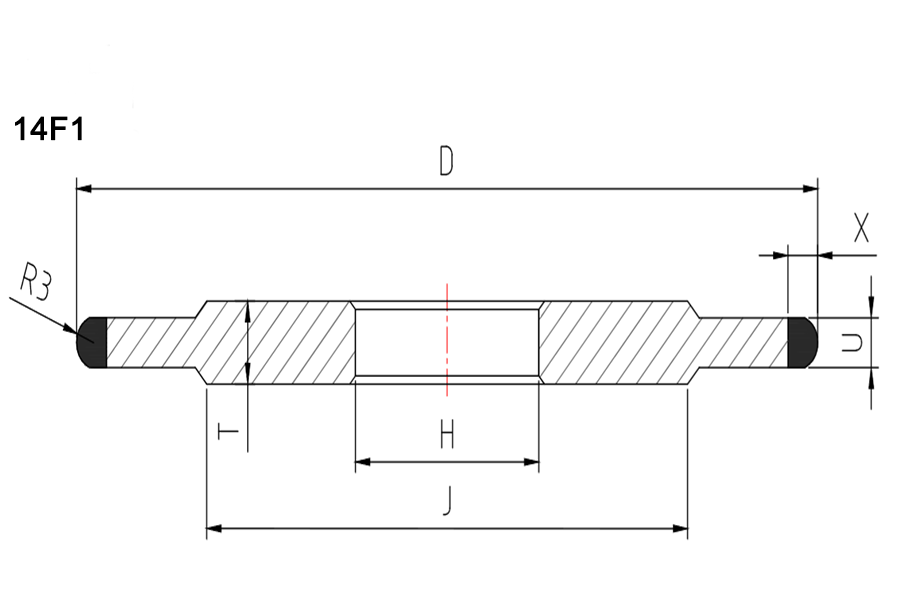

The drawing

Model

D

U

X

H


14F1

100~150

1/5~4

5/7~6

31.75


Gashing and Clear edge(1V1, 12V9):


Model

D

T

X

H

1V1

100~125

4~15

5~10

31.75

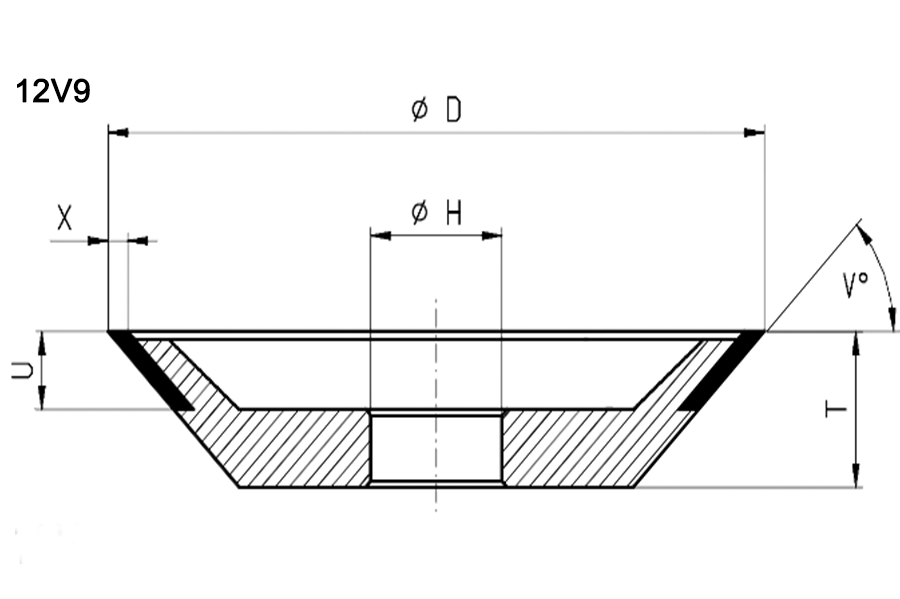

Model

D

W

X

H

12V9

75~125

3~5

10

31.75

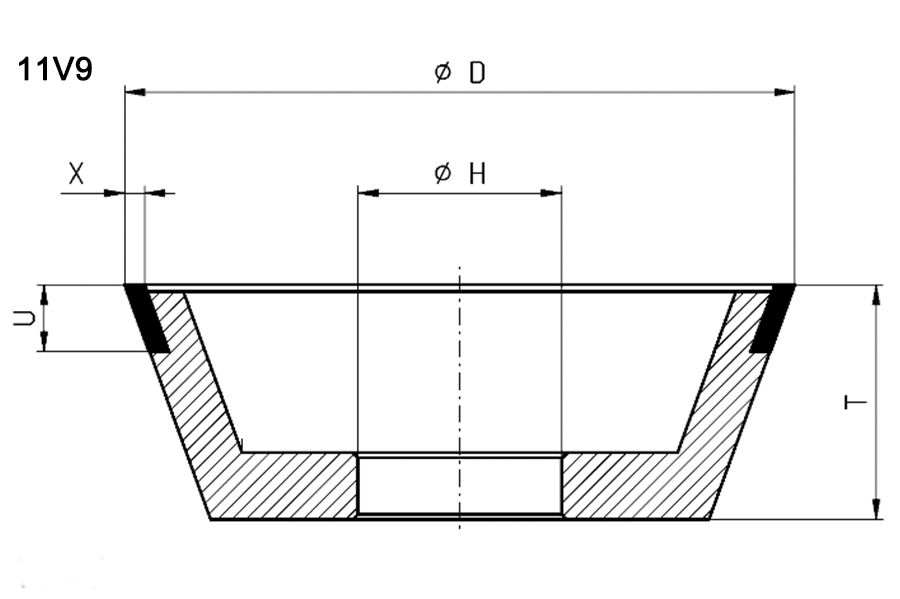

Relief angle grinding(11V9):


Model

D

X

U

H

11V9

75~125

2/3~3

10

31.75

Please note: Other specifications can be customized according to customer drawings or needs.






Application

Advantage of Halnn Grinding Wheel For CNC Tool

1. Superior tool edge quality , High stock removal

2. Perfect flute surface quality, long tool life

3. Excellent surface finish, high efficiency


Grinding machines supporting:

Walter, ANCA, EWAG, Farman, Schutte, Schneeberger, Makino, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner, CUOGHI, Fehlmann and so on.
