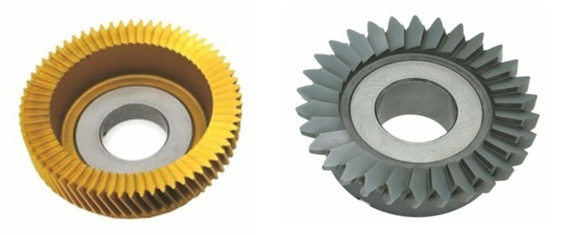

The gear Skiving cutter resembles a gear shaper,and when cutting gears, it behaves similarly to a hob cutter, achieving a gear-making efficiency 5-10 times that of traditional gear shapers. Its gear-making accuracy is 1-2 grades higher than traditional broaching, and it offers flexible processing options. It is widely used for involute gears with internal, external, true, helical, drum-shaped, and tapered teeth.

Tool Material: Powder High-Speed Steel, Carbide

Module Range: m0.1-m6

Tool Structure: Cup-shaped, Tapered Shank, Straight Shank

Tool Accuracy: AA, A

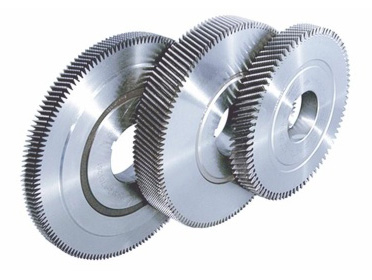

The Gear Shaving Cutter is a key tool for finishing spur and helical involute cylindrical gears. It works by shaving fine, whisker-like chips off the tooth surface using the meshing principle of helical gears, and is primarily used in finishing processes after gear hobbing or shaping.

Tool Type: Radial shaving cutter, Axial shaving cutter

Application: External involute gears, Internal involute gears

Module Range: m0.8~m14

Diameter Range: 100~360

Tool Accuracy: A, B

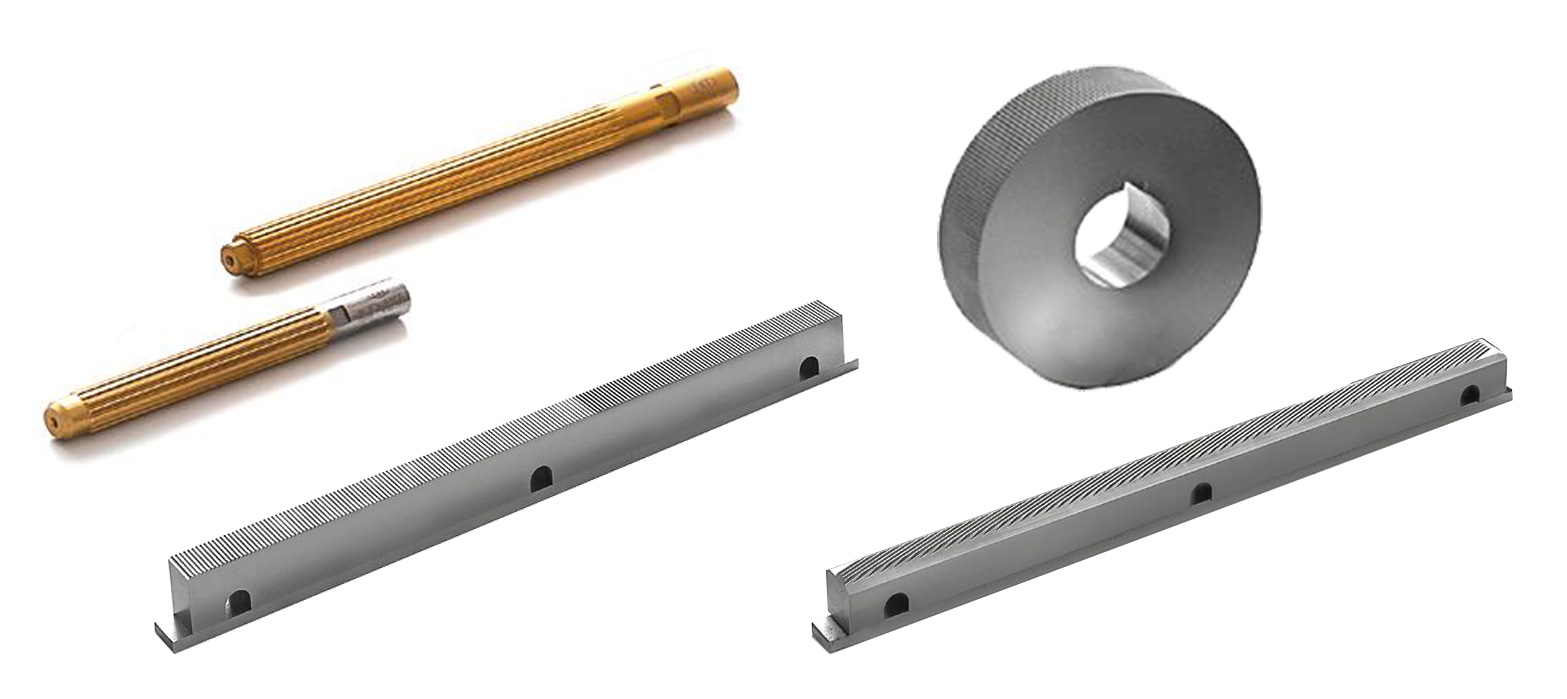

A gear spline rack is a specialized tool for cold extrusion forming of splines. It uses the rolling motion of pre-formed teeth on two plates to perform chip-free cold extrusion forming of the workpiece. It is primarily suitable for cold forming external splines and external tooth profiles, but not for machining internal splines.
